Automatic Powder Measures

Lee Precision Automatic Powder Measures

Lee Precision powder measure kitLee Precision Powder Measure Kit

Fifteen uniformly graduated and proportioned powder dippers. Slide card shows the grains of powder each measure will dispense of every type of powder. Powder measures are inherently safe as they cannot get out of adjustment. Thats why powder dippers continue to be the first choice of reloaders who load in small quantities.

Powder funnelPowder Funnel

A large, unbreakable funnel that fits all cases from .22 to .45 caliber. Hole in flange permits mounting to the Lee Precision Under-Size Mandrel .282, shelf or bench.

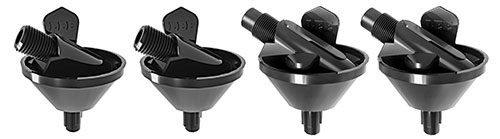

Micro diskQuick Change Drume Set

Features four precision molded nylon drums:

(2) small drums for charging .25 ACP to 223 Remington
(2) large drums for charging the 223 Remington to Large Magnums. Also include an insert to allow reduced capacity charging similar to smaller drum.
Quick Change Drum Set can be used in conjunction with the Classic Powder Measure and the Auto Drum Powder Measure.

All drums are infinitely adjustable within range. No tools are required for adjustment. A graduated adjustment key is included with each drum. Each turn of the adjusting screw is .1 cc or about 1 grain of powder. Each key is marked with .01 cc graduations allowing easy 1/10 grain powder adjustments.

Quickly set your charge, and mark it and the powder type on the flat of the drum set for easy reference for future reloading.




 Automatic case actuated drum powder measure. Accurately and automatically dispense powder in your favorite cartridge.

 Two infinitely adjustable drums included. These Quick Change drums will accurately and reliably drop charges from 1 to 80 grains of powder.


  • Case actuated; never spill a charge.
  • Exclusive elastomer wiper prevents powder shearing, works great with difficult metering extruded powders.
  • Machined body with labyrinth groove mates to the precision molded nylon drums providing a leak free fit with the finest powders.
  • Drum is actuated by a steel sector and pinion gear train.
  • Quick-change hopper has on/off valve to quickly change powders.
  • Sleek modern design, all gears springs and levers inside the die cast housing.
  • Features swivel adapter, makes moving measure fast and convenient.
  • Double charge disconnector reduces the chance of a double charge on progressive presses. (Press must have a fixed tool head or turret to use this feature.)

Double disk kitDouble Disk Kit

This kit raises the hopper so you can stack two disks. This not only doubles the capacity of the disks but it makes very fine adjustments possible. Most powders can be adjusted up or down .1 grain with different combinations of disks. Complete listing of combinations, 4 extra disks, screws and risers are included.

This is a picture of the disks




Auto-disk powder measureLee Precision Auto-Disk Powder Measure

Auto-Disk Powder Measures automatically dispense charges more uniformly than any other powder measure. The case itself actuates the measure as the neck is being flared. The measure is actuated during the presses maximum mechanical advantage. This assures the smooth, even action of the measure. Built-in baffle and precisely molded, glass reinforced charge disks contribute to the unmatched charge uniformity. Includes all four disks


Pro auto-disk powder measureLee Precision Pro Auto-Disk Powder Measure

Commercial reloaders or competitive shooters first choice! Elastomer wiper and teflon coated metal casting make this the smoothest operating measure. Will not cut powder and almost totally eliminates leakage. Large hopper with shut-off valve is attached with brass thumb nuts for the ultimate in disk changing convenience. Increased safety with positive pull-back lever. Includes swivel adapter and spring return lever with spring.

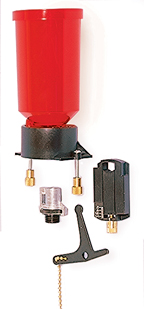

Pro auto-disk update kitPro Auto-Disk Update Kit

Update any Lee Precision Auto-Disk Powder Measure with all the PRO features, except for the teflon coating. Includes oversize hopper and valve assembly with elastomer wiper, swivel adapter assembly for fast and easy transfer between die sets, pullback lever, chain and attachments, solid brass knurled thumb nuts. With FREE adjustable Charge Bar.

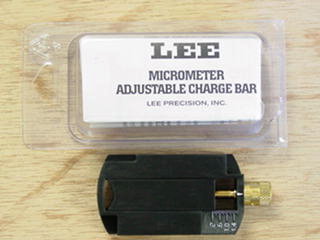

Adjustable charge bar

Adjustable Charge Bar

The adjustable Charge Bar is Infinitely adjustable between .28 and 1.6 cc. Lifetime nylon with solid brass, zero backlash micrometer. Easy to set.




Auto-disk riserLee Precision Auto-Disk Riser

The Lee Precision Auto-Disk Riser allows use of other brands of dies that have extended adjusting screws and provides clearance for the Lee Precision Safety Prime.

Rifle charging die

Lee Precision Long Charging Die & Charging Die Set

This die is used to charge small capacity rifle cases using the Auto-Disk Powder Measure. It works the same as the pistol powder through expanding dies except it doesn't expand the case mouth. Rifle case expansion is normally done in the sizing die.

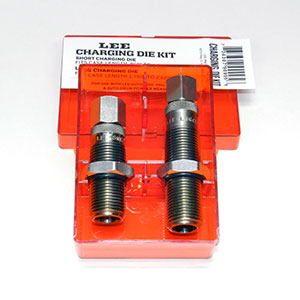

Charging Die Set

Lee Short and Long Charging Dies are included in this kit for use with the Auto-Disk, Pro Auto-Disk and Auto-Drum Powder Measure. ? Works with cases .860 to 2.620 inches long, and bullet diameter .223 and larger.




Works the same as the pistol powder through expanding die, except it doesn't expand the case mouth. Rifle case expansion is done in the sizing die.

Auto-disk riser

Auto-disk pull back leverAuto Disk Pull Back Lever

Pullback lever for progressive reloading. Eliminates the possibility of powder binding while reducing the chance of missed or double charges caused by operator error.


Swivel adapterSwivel Adapter

For fast and easy transfer between die sets. Screws into your die without rotating the measure. Allows precise positioning with firm clamping.




NOTE:
The Auto Disk powder measures must be used with the powder through expanding die supplied with all Lee Precision pistol dies. These dies may be purchased individually. See listing of dies on the Pistol Dies Page.

See What One Satisfied Customer Has To Say About The Auto Disk Powder Measure!

Dennis O. from East Peoria, IL:
I just want to say thank you for your fine line of reloading equipment. I usually dont write letters like this but I had to let you know how much I appreciate the reloading tools of Lee Precision. Like so many others I started out with the Lee Precision Loader, but now have moved up to one of your bench mounted presses with Lee Precision dies, Auto-Disk Powder Measure and other Lee Precision tools and accessories. The Auto-Disk Powder Measure is by far the best piece of reloading equipment for reloaders since the invention of the press itself, and now with the introduction of your new neck sizing dies, you've done it again. Several of these dies will be on my reloading bench very shortly. I don't know what new products Lee Precision will introduce in the months and years ahead but its safe to say it will be part of my reloading bench. All this at a very affordable price. Lee Precision, the innovative leader, how true that is. Keep up the good work.
