Lee Precision Deluxe Carbide 4-Die Set .45 Auto Colt Pistol

The Lee Precision .45 ACP (Automatic Colt Pistol) Deluxe Pistol 4-Die Set combines the world's most popular Carbide Three-die Set with the Lee Factory Crimp Die at a great price. This Lee Carbide 4-die set includes Lee's Carbide Full Length Sizing Die which has a hard diamond polished surface that eliminates the need for lubrication and will never wear out. The decapper clamp collet accurately centers the decapper in the die. The Bullet Seating Die works with the Lee Automatic Bullet Feeder. It has a 45 degree chamfer to allow for the mechanical feed fingers and improved operator clearance.

Also included, the Powder Through Expanding Die charges the case while expanding the case mouth. By separating the seating and crimping operation, Lee's Deluxe Pistol 4-Die Set provides greatly simplified adjustment. But more importantly, the Carbide Factory Crimp Die post sizes your cases thus assuring every round will chamber properly in your gun an absolute must if you reload cases that have been fired in other guns or for use in multiple guns. This, plus all the other exclusive Lee features, make this one of the best die sets money can buy.

No other die set at any price produces more reliable or accurate ammo

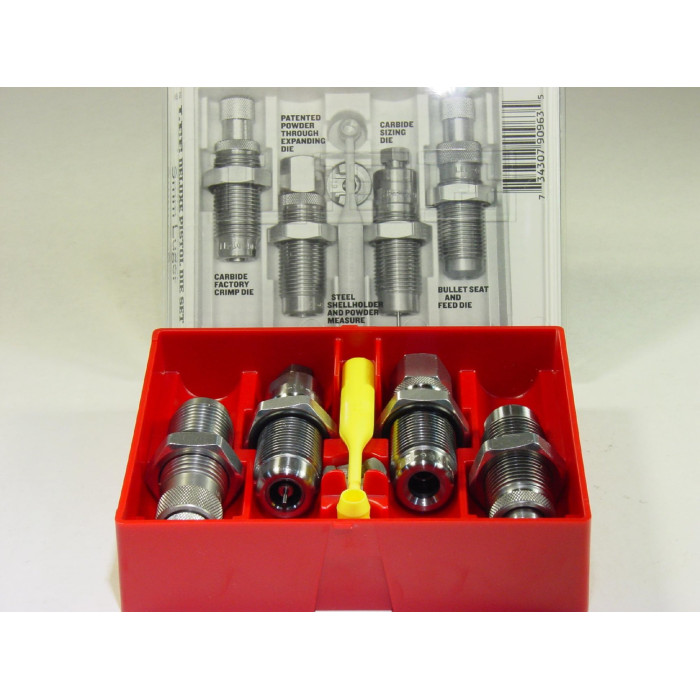

INCLUDES:

• Carbide Full Length Sizing Die with Decapper (shown in image at right)
• Bullet Seating Die
• Powder Thru Expanding Die
• Carbide Factory Crimp Die
• Lee's signature flat die storage box
• Lee Universal Shellholder
• Powder dipper
• Instructions and Load Data Sheet

FEATURES:

• Separate seating and crimping operations
• Powder charges on the press through the Lee Powder Through Expanding Die
• Post sizes cases

NOTES:

• Lee Precision Carbide Dies DO NOT require case lubrication.
• Additional load data is available in Lee's Modern Reloading 2^nd Edition and Barnes Reloading Manual 4^th Edition.
• For further Load Data try HODGDON Powder Co.

IT IS YOUR RESPONSIBILITY TO ENSURE THE SAFETY OF YOUR LOADS

FACTORS THAT WILL INCREASE PRESSURES. SOME WILL BE DANGEROUS:

• DO NOT USE more powder than recommended
• DO NOT USE a heavier bullet than recommended
• DO NOT SEAT the bullet deeper than normal
• DO NOT USE magnum primers unless using a slow burning ball powder
• Greatly oversize bullets, excessively hard bullets or cases that are too long will cause higher pressures
• High temperatures or cartridges that were stored in a hot car or trunk will produce higher pressures

WARNING:

Ammunition reloading can be dangerous if done improperly, and should not be attempted by persons not willing and able to read and follow the instructions included with each product exactly.

• Always wear safety glasses when reloading and shooting.
• Ammunition loaded with these tools should be used in modern guns, in good condition.
• Children should not be permitted to reload ammunition without strict parental supervision.
• Primers and gun powders, like gasoline and matches, can be dangerous if improperly handled or misused.
• We do not accept responsibility for ammunition loaded with these tools, as we have no control over the manufacture and storage of components or the loading procedure and techniques used.

Help for product 90968

Parts	Manual

Product WARNINGS:

We are required to provide Prop 65 product warnings by California's Dear Leader. Please give them appropriate attention.

---



Prop 65: Warning: Handling live primers and spent primers may expose you to lead or other chemicals, which are known to the State of California to cause reproductive harm and cancer. For more information, go to www.P65Warnings.ca.gov.

Prop 65: Warning: This product may contain steel alloyed with trace amounts of lead and other elements which are known to the State of California to cause reproductive harm and cancer. For more information, go to www.P65Warnings.ca.gov. To prevent exposure, do not alter the product by welding, grinding, etc.
