Calipers and Scales




FrankFord Arsenal Calipers

Reloading ammunition requires attention to many critical cartridge dimensions, including case length, neck and base diameters, overall length, primer pocket depth, etc. Verifying these dimensions is quick and convenient with the Frankford Arsenal Calipers. The calipers are accurate to within .001". The calipers allow you to measure inside and outside diameters, plus depths. You will find them useful for many measuring tasks on and off the reloading bench. Packaged in a convenient, protective case.

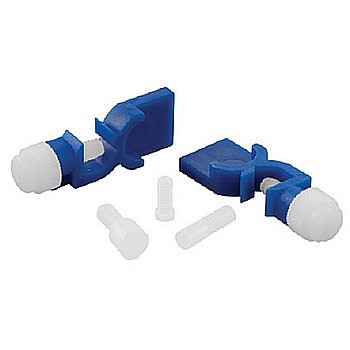

Cartridge Overall Length Gauge

If you have a cleaning rod and a set of calipers, you can now determine the optimum OAL for any bullet in less than two minutes. This simple kit consists of two clamps that easily attach to any cleaning rod, 1/4" in diameter, or less. Simply install the appropriate size tip on the end of your cleaning rod, insert the cleaning rod to the bolt face, install one clamp, remove the bolt and drop in a bullet (projectile only) into the chamber. Hold the bullet against the rifling with a pencil, touch the bullet tip with the cleaning rod tip and install the other clamp. Now measure the inside distance between the two clamps with a calipers and record, or use as a gauge to check the seating depth set-up during your reloading sequence. Works on all rifles.
  Complete instructions are included.






DS-750 Digital Scale


Kit contents include: The ds-750 scale with built-in cover, powder tray, calibration weight, batteries, and storage case

The Frankford Arsenal DS-750 delivers extreme accuracy for precise measurement of powder, bullets, cases or loaded rounds. With 1/10th grain accuracy, you will be able to achieve the maximum potential of your hand loads. An integrated clear plastic cover protects the scale during storage and transport. The large, high-contrast backlit display is easy to read. Simple controls allow for easy changes of units, tare weights or counting. Powder pan, carry bag and calibration weight included. The performance and features of this scale make it a great value and will be a welcome addition to your loading bench.

                                                                                                                                       • Capacity: 750 grain (50 gram)
                                                                                                                                       • Accuracy: 0.1 grain (0.01 gram)
                                                                                                                                       • LCD display with blue backlight
                                                                                                                                       • Integrated protective cover
                                                                                                                                       • Carry pouch holds scale, pan and calibration weights
                                                                                                                                       • Auto Calibration
                                                                                                                                       • Measures in: grains, grams, karats, and ounces
                                                                                                                                       • Tare Function and Counting Function
                                                                                                                                       • Overload protection
                                                                                                                                       • Auto shut off after 60 seconds
                                                                                                                                       • Power: 2 AAA batteries (included)
