Lee Precision Mold Double Cavity 456-220-1R

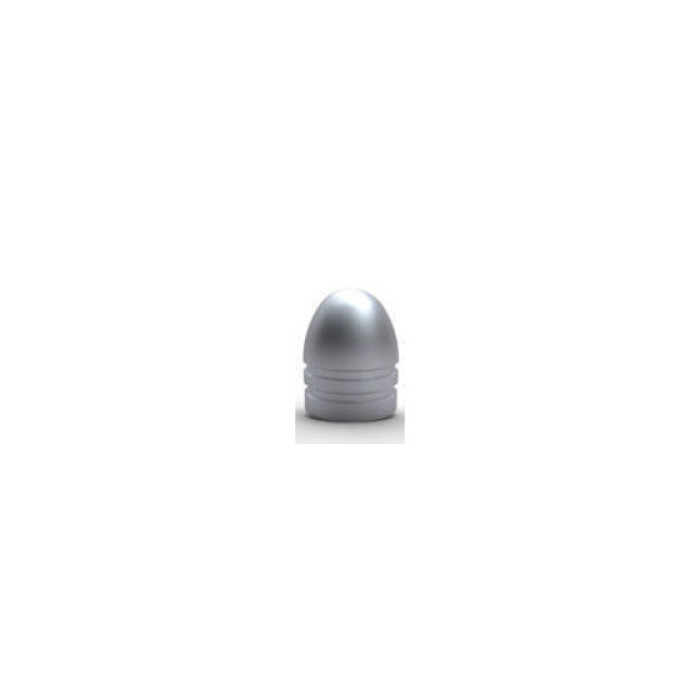

Lee Precision Double Cavity Conical Bullet Mold for Black Powder Revolvers, produces a .456 diameter, 220 grain round nose bullet for .44 Ruger Old Army. An accurate bullet that is easy to load. Will Not Tumble.

Two lube grooves prevent flash ignition and lead fouling. Includes handles

Rifling . Engraved . At . Loading.

The driving bands are large enough to adequately engage the rifling when pushed into the muzzle, and thin enough to withstand maximum charges without stripping or gas cutting.

Unique Cleaning Action. You can shoot all day without cleaning your rifle between shots! When inserted into the muzzle, tiny scraping edges are swagged forward on each driving band.

These perfect fitting scrapers remove the fouling from the previous shot.

Easier, Faster to Load.

Its easy to load straight and true, easier and faster than a round ball with patch. Easily stabilized with very light charges, the R. E. A. L. bullet also retains accuracy with maximum loads. Each band is generously tapered to the rear with an angle close to that of a lathe center, so as to center the bullet against the rifle bands. When pushed in, the bullet automatically centers in the bore. More Accurate. The bevel base of the R. E. A. L. bullet contributes to greater accuracy. When the bullet exits the bore, the gas escapes equally around the perimeter of the base. The uniform bevel is resistant to nicks that would permit gas to escape prematurely and cause a jet effect on one side of the bullet.

For black powder revolvers

Black powder revolver

USE ONLY PURE LEAD

INCLUDES:

  • Hardwood handles
  • Hard anodized sprue plate
  • Two Aluminum mold block halves
  • Instructions

NOTES:

Lead Information:

  • The following lead information is from the Lee Precision Modern Reloading 2nd Edition Book, Pages 119 & 120.
  • For best results, bullet strength must be matched to breech pressure.
  • Black Powder guns require Pure Lead.
  • Target handgun loads should use Lead with 1% Tin. Tin makes bullet alloy more castable & harder.
  • Lead with some wheel weights used for high pressure handguns.
  • Use Wheel Weights for very light rifle loads.
  • High Pressure Rifle loads use Linotype.
  • Beware of Zinc! One part Zinc in 10,000 parts of Lead Alloy will ruin it's castability.

WARNING: Melting lead and casting lead objects will expose you and others in the area to lead which is known to cause birth defects, other reproductive harm and cancer.

USE STRONG VENTILATION

Lead contamination in the air, dust and on your skin is invisible. Keep Children and pregnant women away during use and until clean-up is complete. Risk can be reduced, BUT NOT eliminated, with strong ventilation. Washing hands immediately after use of these products before eating or smoking. Careful cleaning of surfaces and floors with disposable wipes, after lead dust has settled. Use lead-specific cleaner with EDTA or high phosphate detergent (such as dishwasher detergent). Bag wipes for disposal.

IT IS YOUR RESPONSIBILITY TO ENSURE THE SAFETY OF YOUR LOADS

FACTORS THAT WILL INCREASE PRESSURES. SOME WILL BE DANGEROUS:

  • DO NOT USE more powder than recommended
  • DO NOT USE a heavier bullet than recommended
  • DO NOT SEAT the bullet deeper than normal
  • DO NOT USE magnum primers unless using a slow burning ball powder
  • Greatly oversize bullets, excessively hard bullets or cases that are too long will cause higher pressures
  • High temperatures or cartridges that were stored in a hot car or trunk will produce higher pressures

WARNING:

Ammunition reloading can be dangerous if done improperly, and should not be attempted by persons not willing and able to read and follow the instructions included with each product exactly.

  • Always wear safety glasses when reloading and shooting.
  • Ammunition loaded with these tools should be used in modern guns, in good condition.
  • Children should not be permitted to reload ammunition without strict parental supervision.
  • Primers and gun powders, like gasoline and matches, can be dangerous if improperly handled or misused.
  • We do not accept responsibility for ammunition loaded with these tools, as we have no control over the manufacture and storage of components or the loading procedure and techniques used.
Help for product 90384
Parts Manual Video

Product WARNINGS:

We are required to provide Prop 65 product warnings by California's Dear Leader. Please give them appropriate attention.


Prop 65: Warning: for the melters and bullet molds: WARNING: Melting and casting lead objects will expose you and others in the area to lead, which is known to the State of California to cause reproductive harm and cancer. For more information, go to www.P65Warnings.ca.gov. See instructions on Reducing Exposure supplied with product.

Write a review

Logged in customers receive 20 reward points for posting a valid product review. See the Customer Rewards Program for details.
Note: HTML is not translated!
    Bad           Good

Lee Precision Mold Double Cavity 456-220-1R

Brand: Lee Precision
Product Code: 90384
Reward Points: 31
Only Ships to: Selected Countries
Availability: Out Of Stock - No Backorder

MSRP: 44.98
MPN: 90384
Condition: new
Country of Origin: United States
Package Quantity: 1
Product Weight: 0.9 lbs
UPC: 7343079038486
Shipping Restrictions: No
Carrier Restrictions: No
DOT Regulated: NO
Bullet Type: 1 Ogive Radius
Bullet Weight: 220 grain
Bullet Diameter: .456 inches
